camera systems

rotorcraft inspection gimbals

IMG_1388

GSS u416

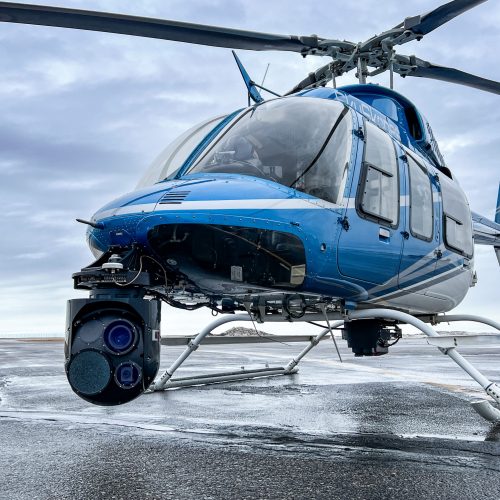

The Gyro-Stabilized Systems U416 utility gimbal offers our most advanced camera and sensor technology. Housed in a 4-axis stabilized gimbal we are able to integrate high-end sensors to capture the best imagery from a helicopter at altitudes greater than 250 ft above the ground.

CAMERA SENSORS

  • Jenoptik Blackbird Precision Thermal Camera XGA, 120mm lens
  • Phase One IXM-100, 300mm lens
  • Sony Block Camera, 4k video
  • Options for OGI camera or Corona Camera

gss 516

The 516 gimbal is a powerful 5-axis stabilized gimbal that has both  HD video recording and a swappable Phase One camera or thermal camera. This gimbal is able to capture outstanding inspection imagery with cinema-quality smooth video for right-of-way inspections.



CAMERA SENSORS

  • Jenoptik Blackbird Precision Thermal Camera, XGA, 60mm lens
  • Phase One IXM-100, 300mm lens
  • Sony Block Camera, Full HD video

FIXED-WING & ROTORCRAFT MAPPING CAMERAS

phase one nir solution

The 4-Band solution includes two synchronized Phase One metric calibrated cameras (RGB and Achromatic) mounted side by side. This camera system captures 100 megapixel imagery allowing for centimeter GSD (Ground Sampling Distance). It is integrated with the Ranger XL LiDAR and can be installed on our fixed wing or rotorcraft.

DRONE CAMERA SYSTEMS

DJI H20T

The H20T is the industry standard for high-resolution close-up inspection imagery. Boasting a 23x hybrid optical zoom with a dual thermal camera, this sensor can capture any component needed.

SONY A7RIV

The Sony a7R IV is a full-frame 61MP camera that is good for both mapping and asset inspections. The a7R series allows for non-Chinese drone options that some customers may require.

MICA SENSE ALTUM

The Altum is a multi-spectral camera that is able to capture 5 narrow bands that can provide detailed information on vegetation health along with a high-resolution RGB orthomosaic.
